ZT-JGQG6S Fiber Laser Cutting Machine

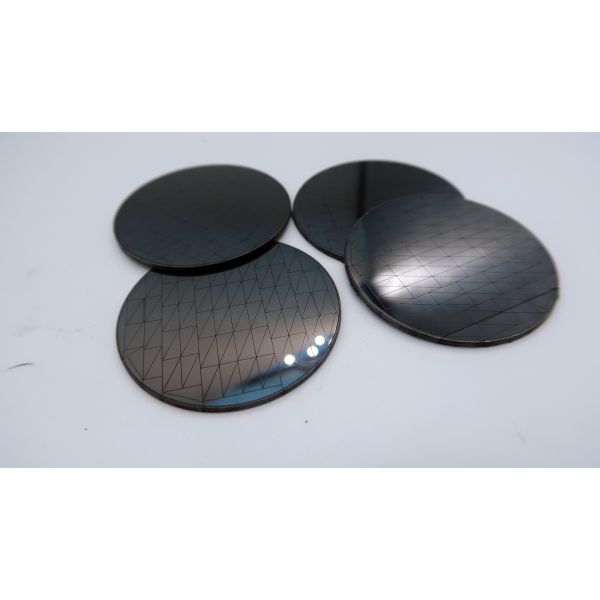

ZT-JGQG6S is a new model of laser cutting machine. The self-developed laser source makes better cutting performance, completely replaced the traditional YAG cutting machine. Higher cutting speed and thinner cutting kerf (2.0mm thickness PCD, the cutting kerf is 0.06-0.08mm), smooth cutting surface, running steady and maintenance-free. Suitable for cutting PCD/PCBN/CVD/Sapphire/PDC/Cemented Carbide/Ceramics and other precious and ultra-hard materials. Especially, it has incomparable advantages in cutting low content PCBN.
Design Features:
• Marble base table, not affected by temperature and humidity, stable and not easy to deform.
• Adopts advanced fiber laser module, more stable, more precise, more durable and
maintenance-free.
• The self-developed laser source, minimum after-sales service cost.
• High efficiency, high precision cutting, thin cutting kerf, saves the material.
• 3 times faster cutting speed than YAG, with smaller heat-affected zone.
• Two axis of the worktable are driven by servo motor, closed-loop control, repositioning accuracy ≦ 0.005mm.
• 24 hours working, processing any 2D graphics, software supports automatic model and manual model, equipped with CCD monitor.
• Z axis step motor drive and A axis as rotary axis, can process the material with relief angle.
Technical Parameters:
|
Laser system
|
Fiber Laser Module QCW800
|
|
CNC system
|
X/Y/Z high precision removable worktable, rotary A axis
|
|
Software control system
|
Self-developed CNC system based on windows
|
|
Monitor system
|
Industrial camera + optical amplification system
|
|
Cutting head
|
Special custom super hard material cutting head
|
|
Focus system
|
High resolution laser sensor (optional)
|
|
Dimension
|
1500*920*1640mm (L*W*H)
|
|
Electric power
|
380v-3phase-5wires 50HZ
|
|
Total power
|
4KW
|
|
Laser source
|
Fiber
|
|
Worktable
|
220*220*100mm(x*y*z)
|
|
Z axis tilt angle
|
±30°(processing single axis relief angle products)
|
|
Reposition accuracy
|
≦0.005mm
|
|
Worktable max load capacity
|
≦15kgs
|
|
Max removing speed
|
600mm/min manual (standard)
|
|
Laser focus system
|
Automatic (optional)
|
|
Net weight
|
820kgs
|
